PRODUCT MODEL:

Distribution Amplifier (LNDA-3)

DESCRIPTION:

The LNDA-3 is a high performance 3-way frequency distribution amplifier designed to distribute HF ULN crystal oscillator or other low phase noise source signals and features a phase noise floor as low as -178 dBc/Hz intrinsic at the 100 kHz offset. The distribution amplifier operates on +15 VDC and includes a low noise voltage regulator for excellent power supply line rejection.

  • 5 MHz and 10 MHz Standard
  • Ultra Low Phase Noise
  • Three Isolated Outputs
  • Output Levels to +16 dBm
  • Integral Voltage Regulator
  • Frequency Distribution
  • ULN Signal Distribution
  • RF Systems Component

VIEW THE BROCHURE

Features

The LNDA-3 is a high performance 3-way frequency distribution amplifier designed to distribute HF ULN crystal oscillator or other low phase noise source signals and features a phase noise floor as low as -178 dBc/Hz intrinsic at the 100 kHz offset. The distribution amplifier operates on +15 VDC and includes a low noise voltage regulator for excellent power supply line rejection.

  • 5 MHz and 10 MHz Standard
  • Ultra Low Phase Noise
  • Three Isolated Outputs
  • Output Levels to +16 dBm
  • Integral Voltage Regulator
  • Frequency Distribution
  • ULN Signal Distribution
  • RF Systems Component

Applications

The LNDA-3 is a high performance 3-way frequency distribution amplifier designed to distribute HF ULN crystal oscillator or other low phase noise source signals and features a phase noise floor as low as -178 dBc/Hz intrinsic at the 100 kHz offset. The distribution amplifier operates on +15 VDC and includes a low noise voltage regulator for excellent power supply line rejection.

  • 5 MHz and 10 MHz Standard
  • Ultra Low Phase Noise
  • Three Isolated Outputs
  • Output Levels to +16 dBm
  • Integral Voltage Regulator
  • Frequency Distribution
  • ULN Signal Distribution
  • RF Systems Component

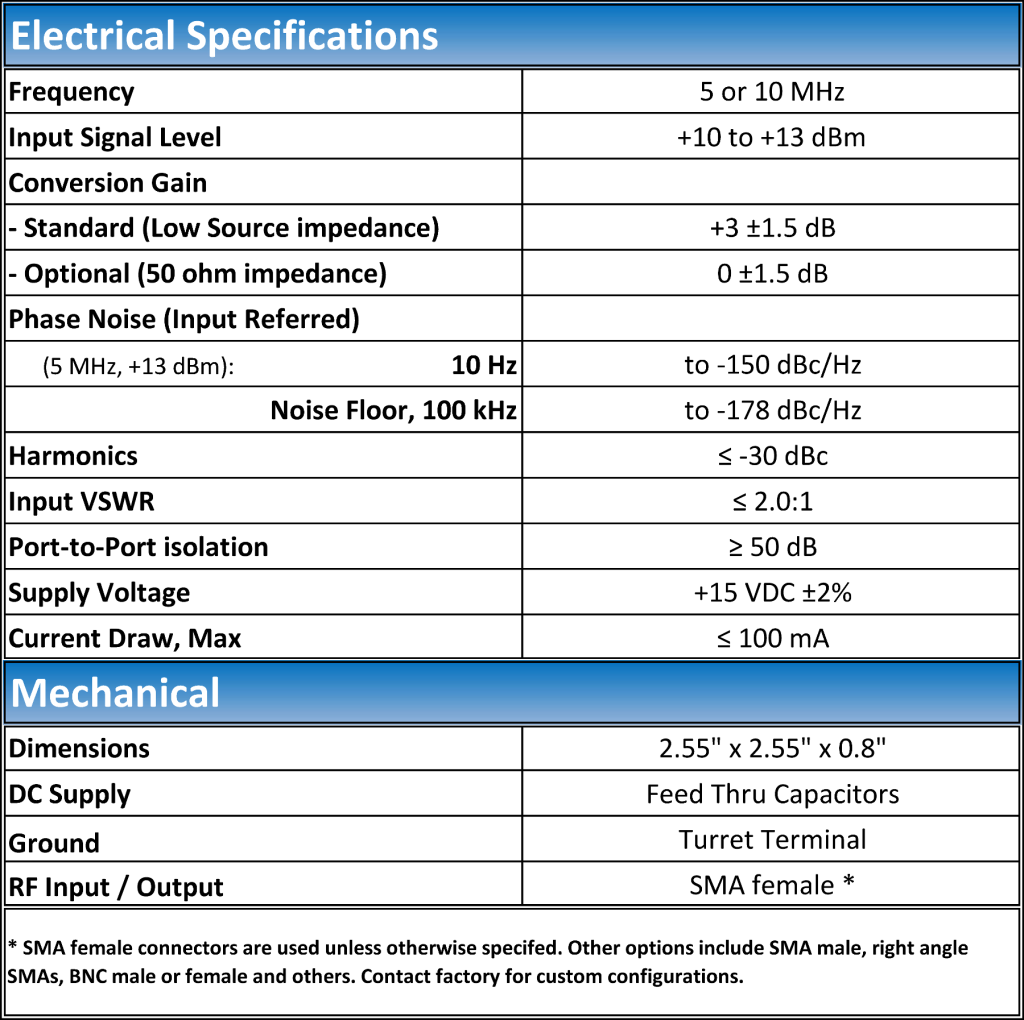

Specifications

LNDA-3 specs

Mechanical Drawing

LNDA-3 mechanical

Mechanical Drawing Detail for Distribution Amplifier (LNDA-3)

LNDA-3 mechanical
