PRODUCT MODEL:

Broadband Amplifier (LNBA)

DESCRIPTION:

The LNBA is a broadband amplifier that is characterized to a specific customer specified frequency within the operating band. A wide selection of common amplifiers and input/output attenuators provide flexibility in configuring gain and input/output levels (see amplifier selection table for options). Residual phase noise is verified at 100 MHz unless otherwise specified. Please consult our technical staff for assistance in configuring an amplifier to suit your input and output requirements.

  • Frequencies to 2 GHz
  • Characterized Phase Noise
  • Integral Attenuators for Flexibility
  • Low Phase Noise Amplification
  • Broadband Amplification

VIEW THE BROCHURE

VIEW THE AMPLIFIER SELECTION GUIDE

Features

The LNBA is a broadband amplifier that is characterized to a specific customer specified frequency within the operating band. A wide selection of common amplifiers and input/output attenuators provide flexibility in configuring gain and input/output levels (see amplifier selection table for options). Residual phase noise is verified at 100 MHz unless otherwise specified. Please consult our technical staff for assistance in configuring an amplifier to suit your input and output requirements.

  • Frequencies to 2 GHz
  • Characterized Phase Noise
  • Integral Attenuators for Flexibility
  • Low Phase Noise Amplification
  • Broadband Amplification

Applications

The LNBA is a broadband amplifier that is characterized to a specific customer specified frequency within the operating band. A wide selection of common amplifiers and input/output attenuators provide flexibility in configuring gain and input/output levels (see amplifier selection table for options). Residual phase noise is verified at 100 MHz unless otherwise specified. Please consult our technical staff for assistance in configuring an amplifier to suit your input and output requirements.

  • Frequencies to 2 GHz
  • Characterized Phase Noise
  • Integral Attenuators for Flexibility
  • Low Phase Noise Amplification
  • Broadband Amplification

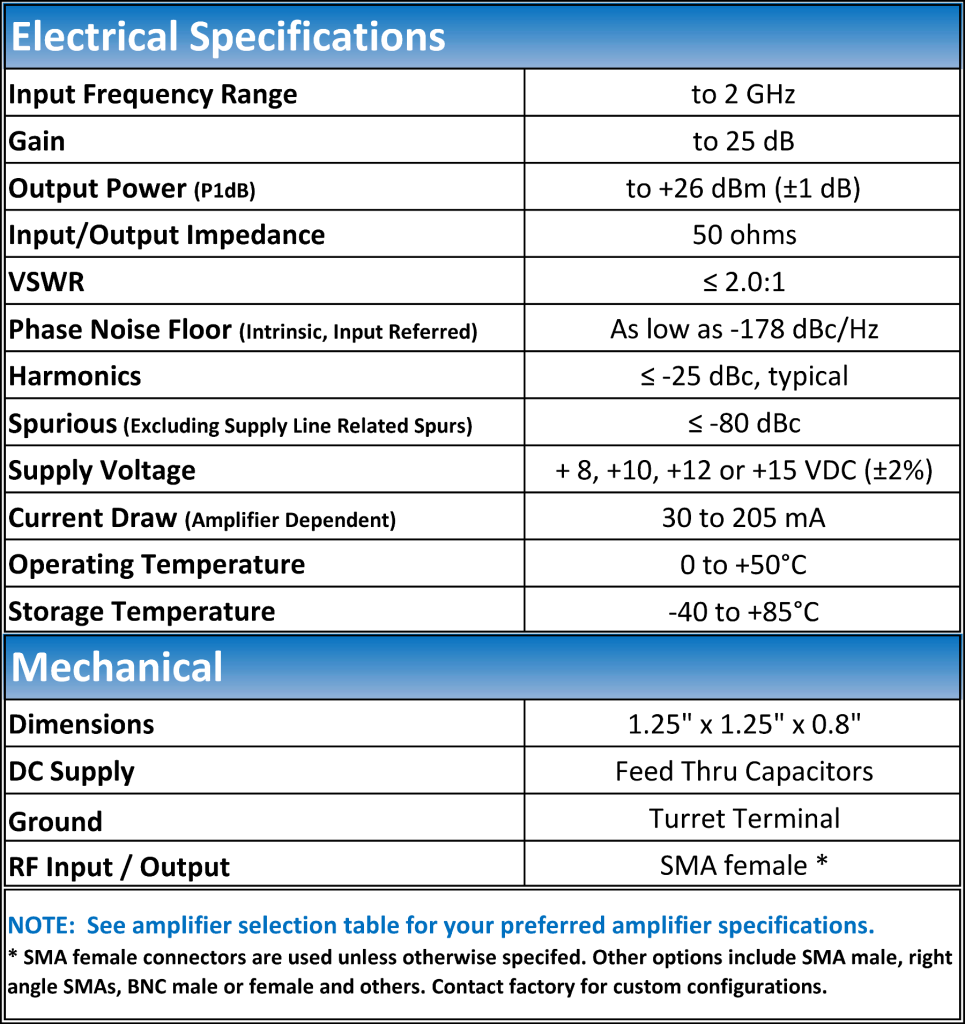

Specifications

LNBA Specs

Mechanical Drawing

LNBA mechanical

Mechanical Drawing Detail for Broadband Amplifier (LNBA)

LNBA mechanical
